BTF Series

BTF010 10 Quart Planetary Mixer – 120V, 1PH, BTF040 40 Quart Planetary Mixer – 208-240V, 1PH, BTF060 60 Quart Planetary Mixer – 208-240V, 1PH, BTL020 20 Quart Planetary Mixer – 120V, 1PH

BTF Series

BTF010 10 Quart Planetary Mixer – 120V, 1PH, BTF040 40 Quart Planetary Mixer – 208-240V, 1PH, BTF060 60 Quart Planetary Mixer – 208-240V, 1PH, BTL020 20 Quart Planetary Mixer – 120V, 1PH

Dominate your dough with Doyon’s BTF Planetary Mixers—the most powerful machines in their class. Engineered with a high-torque belt-driven motor (up to 4 HP), these mixers offer maximum efficiency and heavy-duty durability with minimal maintenance. With 20 distinct speeds and an integrated 99-minute timer, you get total precision for every recipe, across capacities ranging from 10 to 60 quarts.

GET A QUOTE A Middleby Company

Find a Sales Rep Find a Dealer Parts

BTF040 Rendering

FEATURES

Non-slipping belt driven motor provides durability for tough mixes; no need to stop mixer to change speeds
Slow to start and ramp-up speed changes to prevent bowl spillages and safe incorporation of ingredients
Quiet operation and motor overload protection; quick-locking anti-vibration device
Digital controls with 99 minute timer, 20 speeds and seven programmable speed and time setting
Stainless steel safety guard with automatic motor cut-off switch; emergency stop button
Includes all stainless steel bowl, dough hook, flat beater and whip
Capacities ranging from 10 to 60 quarts
BTL020: 20 qt floor ergonomic mixer with higher bowl height for easier lifting
Available in lead-free white enamel coated carbon steel frame (standard) or stainless steel construction (optional)

CHOOSE YOUR MODEL

Model #	Specs	Manual	Revit Model	Purchase

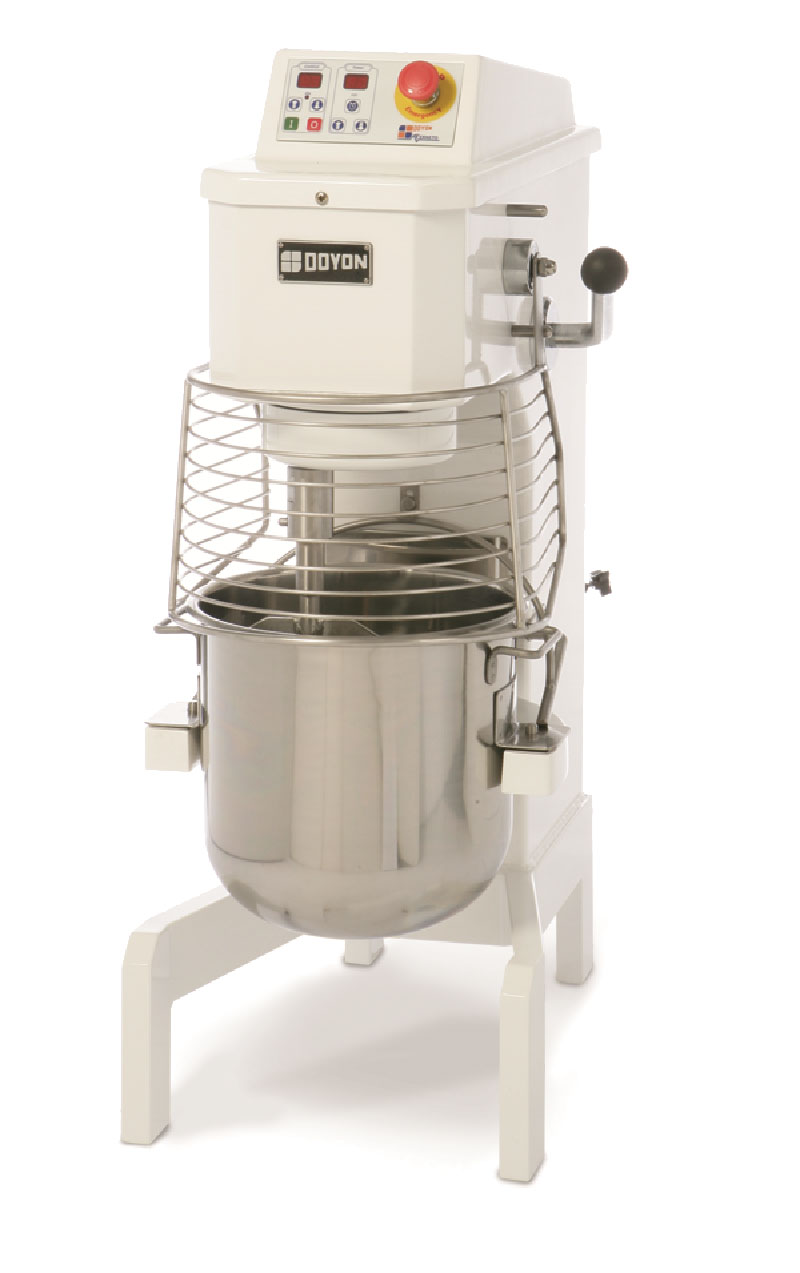

BTF010 10 Quart Planetary Mixer – 120V, 1PH	Download	Download	Download	GET A QUOTE A Middleby Company
The BTF010 Planetary Mixer features a powerful belt driven motor with overload protection for the highest reliability and efficiency while keeping maintenance cost low. The 1/2 HP motor and non-slipping belt provide the durability and torque necessary for tough mixes.
BTF040 40 Quart Planetary Mixer – 208-240V, 1PH	Download	Download	Download	GET A QUOTE A Middleby Company
The BTF040 Planetary Mixer features a powerful belt driven motor with overload protection for the highest reliability and efficiency while keeping maintenance cost low. The 3 HP motor and non-slipping belt provide the durability and torque necessary for tough mixes.

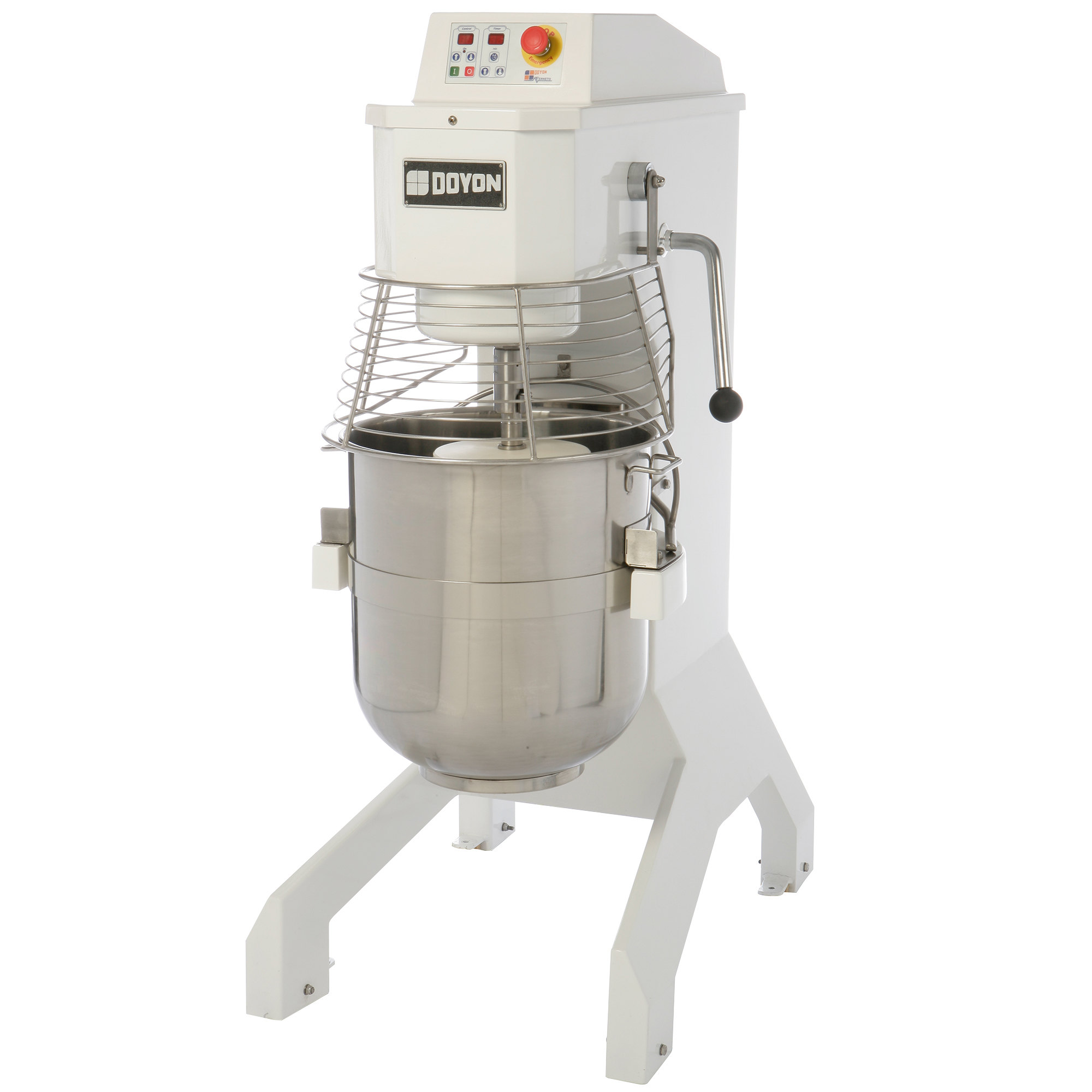

BTF060 60 Quart Planetary Mixer – 208-240V, 1PH	Download	Download	Download	GET A QUOTE A Middleby Company
The BTF060 Planetary Mixer features a powerful belt driven motor with overload protection for the highest reliability and efficiency while keeping maintenance cost low. The 4 HP motor and non-slipping belt provide the durability and torque necessary for tough mixes.

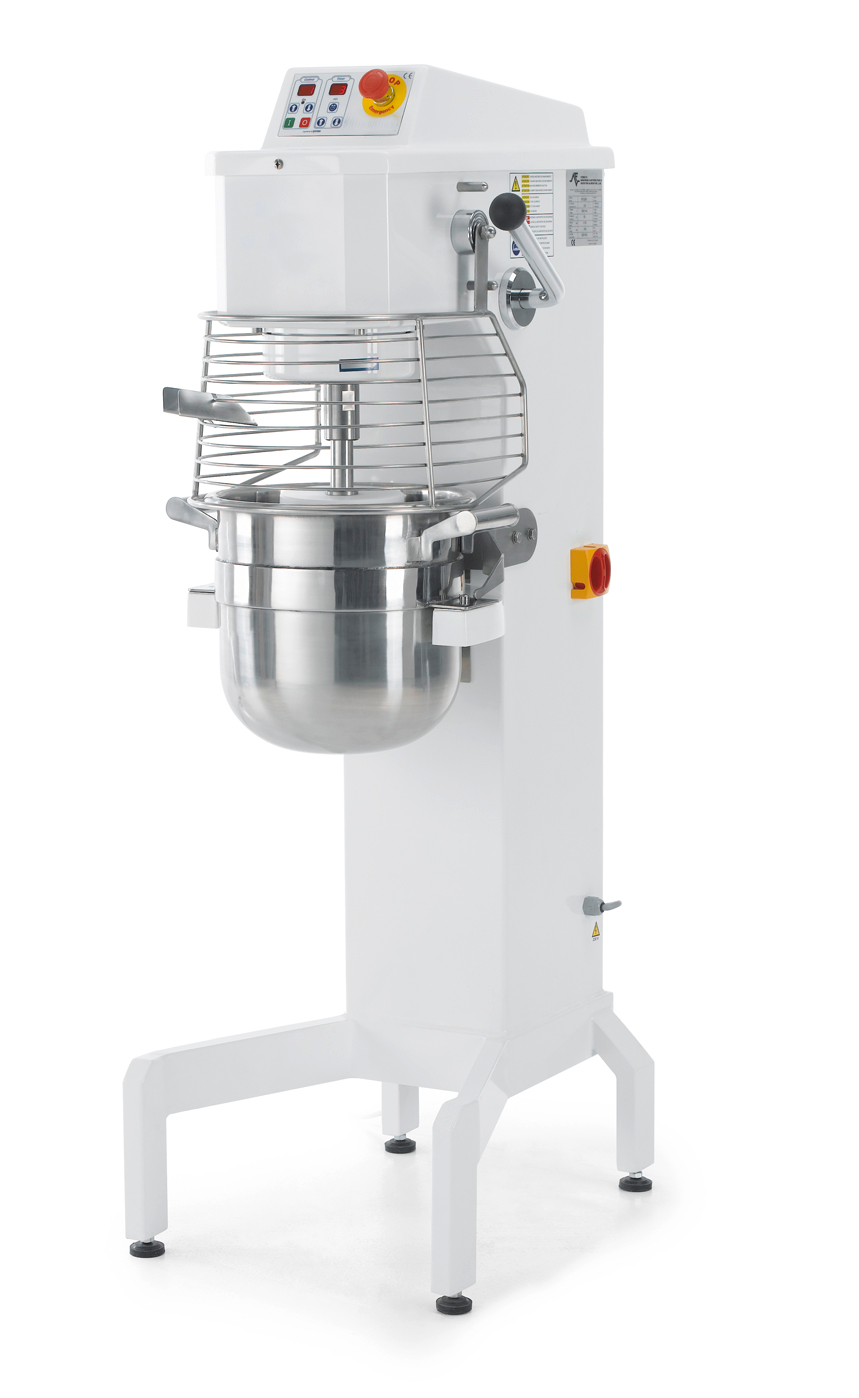

BTL020 20 Quart Planetary Mixer – 120V, 1PH	Download	Download	Download	GET A QUOTE A Middleby Company
The BTL020 Planetary Mixer features a powerful belt driven motor with overload protection for the highest reliability and efficiency while keeping maintenance cost low. The 1 HP motor and non-slipping belt provide the durability and torque necessary for tough mixes.
